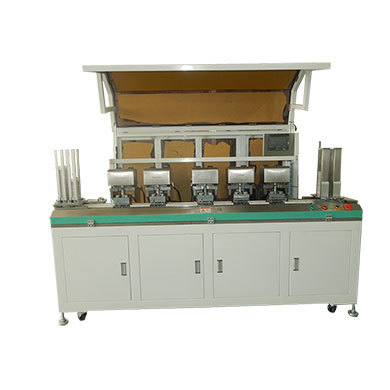

SIM GSM Card Punching Machine

SIM GSM Card Punching Machine
SIM GSM Card Punching Machine
Send Inquiry
Product Code : RK-SP01
Brand Name : Rikong
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Specifications
  • Product Type
  • Brand new
  • Material
  • Steel
  • Warranty
  • 1 year
Product Description
To ease the process of SIM/ GSM card plug punching, we present before you our advanced SIM/GSM Card Punching Machine which is controlled by a servo motor which makes the operation stable and noise free. The machine is equipped with double cards detection feature to increase the productivity. The provided module detection function makes sure that the direction of the inserted card is automatically known during transfer. Special location design features allows punching different cards with special shapes. Sensors are added on the card centering system to ensure high accuracy of cutting and punching. Two magazine feeding designs fastens the process of punching. Cards are automatically collected post the completion of punching. Cards are transferred through belt driven by servomotor ensure the operational safety and stability of the machine. The software design can be customized as per the requirement of our clients. Machine can be automatically with the help of a button. The machine features a special feeding design which effectively avoids unloading double cards caused by static electricity. Moreover, our clients can approach us for availing this SIM/GSM Card Punching Machine at budget friendly price.

Technical specification

  • Size:1400mm x 700mm x 1300mm
  • Weight:500kgs
  • Power supply:AC220V 50/60HZ
  • Power:1.5 KW
  • Air pressure:6kg/cm
  • Air supply:80L/min
  • Control: servo system + PLC
  • Precision:X and Y0.0125mm
  • Accuracy:0.01mm
  • Production:4000~4500pc/h
Trade Information
  • FOB Port
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • Supply Ability
  • 5 set Per Month
  • Delivery Time
  • 2 Months
  • Packaging Details
  • Seaworthy wooden case
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
